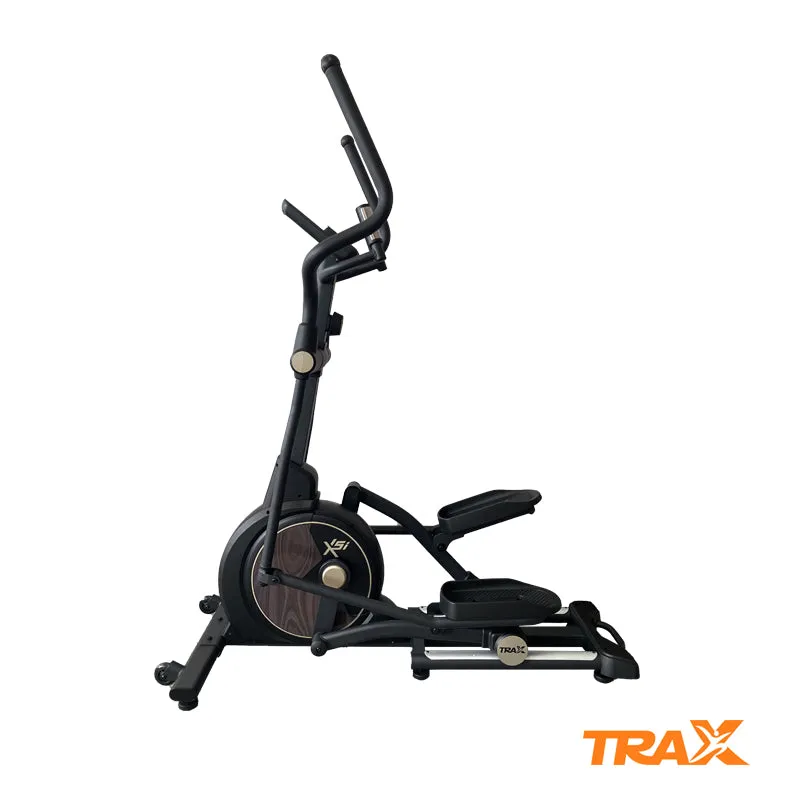

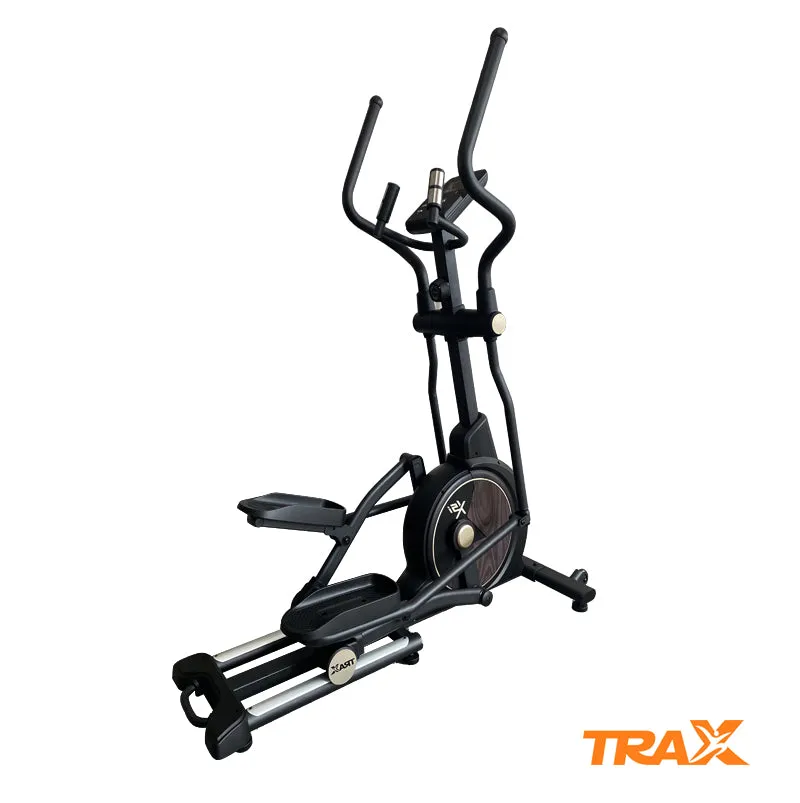

Trax X5i Elliptical Exercise Trainer Machine

Technical Specifications

TIME                     : 00:00-99:59
SPEED (SPD)        : 0.0-99.9KM/H (ML/H)
DISTANCE            : 0.00-99.99KM (ML)
CALORIES            : 0-9999KCAL
RPM                     : 0-999
PULSE (PUL)        : 0，72~240BPM

Available In-Store: Installment plans of up to 12 months, 0% interest

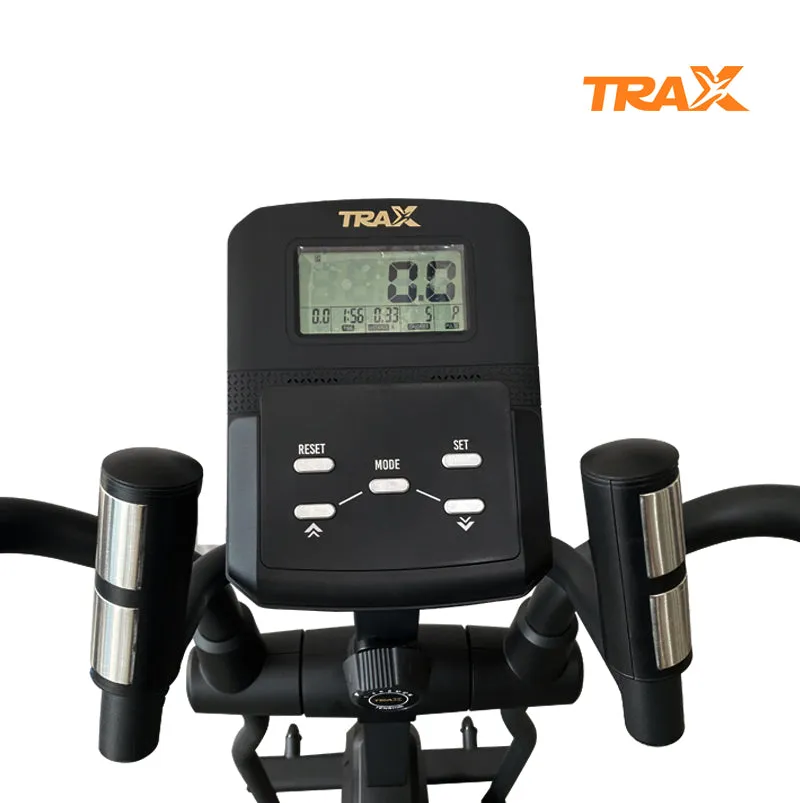

KEY FUNCTIONS:
MODE: This key lets you to select and lock on to a particular function you want.
SET: Press the button to enter or exit setting mode.
UP: During the setting mode, press the key to increase the value of Time, Distance, Calories, and
Pulse. Press the button and hold to speed up the increment.
DOWN: During the setting mode, press the key to decrease the value of Time, Distance, Calories,
and Pulse. Press the button and hold to speed up the decrement.
RESET: During the setting mode, press the key to reset the value to zero.

OPERATION PROCEDURES:
1. AUTO ON/OFF：
The system turns on when any key is pressed or when it receives an input from the speed
sensor.
The system turns off automatically when the speed has no signal input or no keys are
pressed for approximately 4 minutes.
2. RESET：The unit can be reset by either changing the battery or pressing the MODE|RESET key
for 3 seconds.
3. MODE：To choose the SCAN or LOCK if you do not want the scan mode, press the MODE key
when the pointer on the function you want begins blinking.

FUNCTIONS:
1. TIME: The total working time will be shown while exercising.
2. SPEED: The current speed will be shown.
3. DISTANCE: The distance of each workout will be displayed.
4. CALORIE: The calorie burned will be displayed while exercising.
5. RPM (IF HAVE): Measure the average number of times.
6. PULSE (IF HAVE): User’s current heart rate will be displayed in beats per minute. Place the
palms of your hands on both of the contact pads (or put ear-clip to ear), and wait for 30 seconds
for the most accurate reading.

SCAN: Automatically display changes every 6 seconds.
BATTERY: If improper display on monitor, please reinstall the batteries to have a good result.

*Call  to verify availability. Prices may differ outside Metro Manila. All published prices are subject to change without prior notice.

[#header1] Warranty [/header1][#content1]

3 years frame, 1 year service, 3 months consumable parts

The following are NOT COVERED BY THE WARRANTY:

1. Repairs or attempted repairs and modifications by anyone not authorized by CHRIS SPORTS.
2. Serial numbers' label has been defaced, modified, or removed.
3. Damages caused by accidents, abuse, misuse, neglect, or failure to follow instructions contained in the Owner’s manual.
4. Damages caused by water, fire, flood, getting hit by other objects, and other fortuitous events.
5. Damages caused by pets, pests, cockroaches, rats, and other rodents including insect infestations.
6. Damages caused by accidental plugging of wrong voltage not conforming to the unit’s requirement.

7. Damages caused by power surge and lightning charges.
8. Unit is exposed in outdoors (garage, pool area, patio, etc.), making it exposed to sun, rain, dust, and moisture.
9. Damages occurred during shipment (claims must be presented to shipper).
10. Home service fee, repair service fee, and travel expenses for field service.
11. Removal and installation charges are not covered.
12. The following are not covered by warranty: foam, wheels, batteries, upholstery, seat, and pedal straps.
